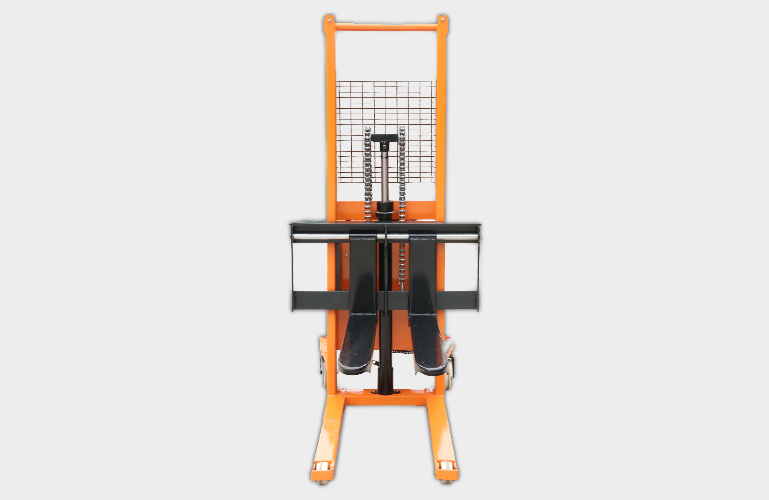

semi-electric stacker

Produced by special rolling process “ C” Shaped steel door frame strong and safe worry - free and durable;
Can be customized according to customer demand a variety of lifting height.
Vehicle structure is rigorous fine workmanship beautiful appearance;
Choose to use special hydraulic pump power is strong equipped with high-quality batteries lasting power;
The surface is treated with baking paint and the plastic shell adopts injection molding.
Electric lifting human-driven with the function of loading and unloading and short distance transportation of goods;
Applicable to the loading and unloading of goods in workshops warehouses stations etc.
It has the characteristics of stable lifting labor saving flexible rotation and convenient operation.
It is an ideal tool to reduce labor intensity improve work efficiency and realize safe loading and unloading.
Material code unit
Rated Load Qkg 1000/1500/2000 1000
Load Center Cmm 400 400
MaxFork Height Hmm 1600 2000/2500/3000/3500
MaxFork Height H2mm - 2560/3060/2560/4000
Fork Length Lmm 1000 1000
Fork Width Emm 300-680/300-550(可選) 300-630/300-550(可選)
Turning Radius Rmm 1350 1350/1450
Front and Rear Wheel Wheelbase Ymm 1180 1186
Front Wheel Base Distance Xmm 322 316
Lifting Motor V/kw 12/1.5-1.6 12/1.5-1.6
Battery V/Ah 12/120-150 12/120-150
Charger V/A 12/15 12/15
Overall Lenght Amm 1670 1660/1660/1600/1660
Overall Widht Bmm 865 810/810/930/930
Overall Height H1mm 2060 1580/1830/2080/2330
Overall Weight kg 340/362/388 424/448/468/490
